Rolls Royce.K60.Workshop manual.Publication No.2291.1966.

 Rolls Royce.K60.Workshop manual.Publication No.2291. 1966.

Used in the FV430 series of armoured vehicles.

Covers.

• Description.
• General engine specification.
• Dimensional data.
• Lubrication.
• Crankcase and cylinder liners.
• Connecting rods and pistons.
• Crankshafts, bearings and dampers.
• Wheel case and gears. 1 page missing.
• Scavenge blower drive.

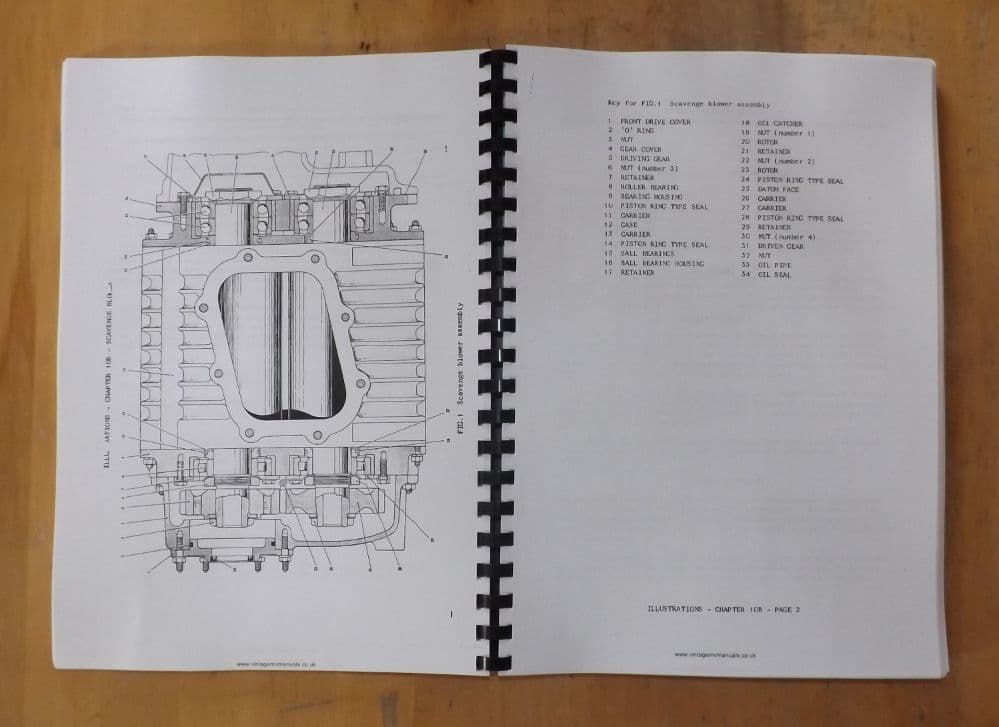

• Scavenge blower (Type 2R050/2680).
• Scavenge blower (Type 3R041/3630).

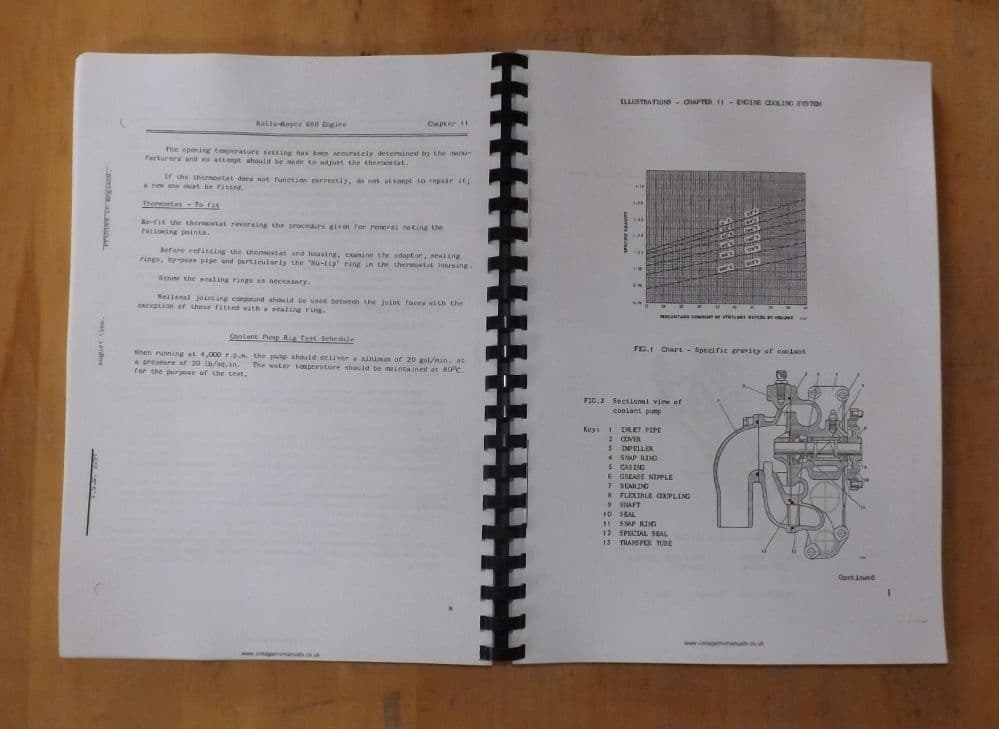

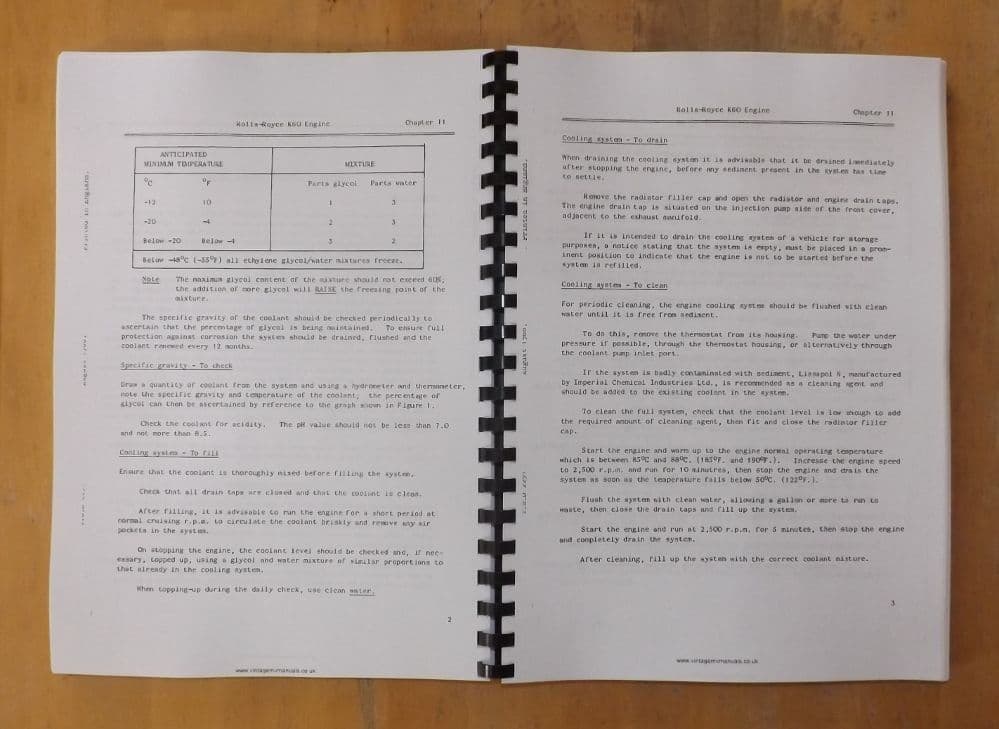

• Cooling system.
• Alternator drive.
• Tachometer and hour meter drive.
• Exhaust manifolds.
• Power take off.
• Injection pump mounting and drive.
• Injection pump.
• CAV Fuel injectors.
• Cold start equipment.
• CAV hydraulic governor.
• PSG hydraulic governor.
• Starter motor.
• Turbochargers.
• Fault diagnosis.
• Storage Tools.

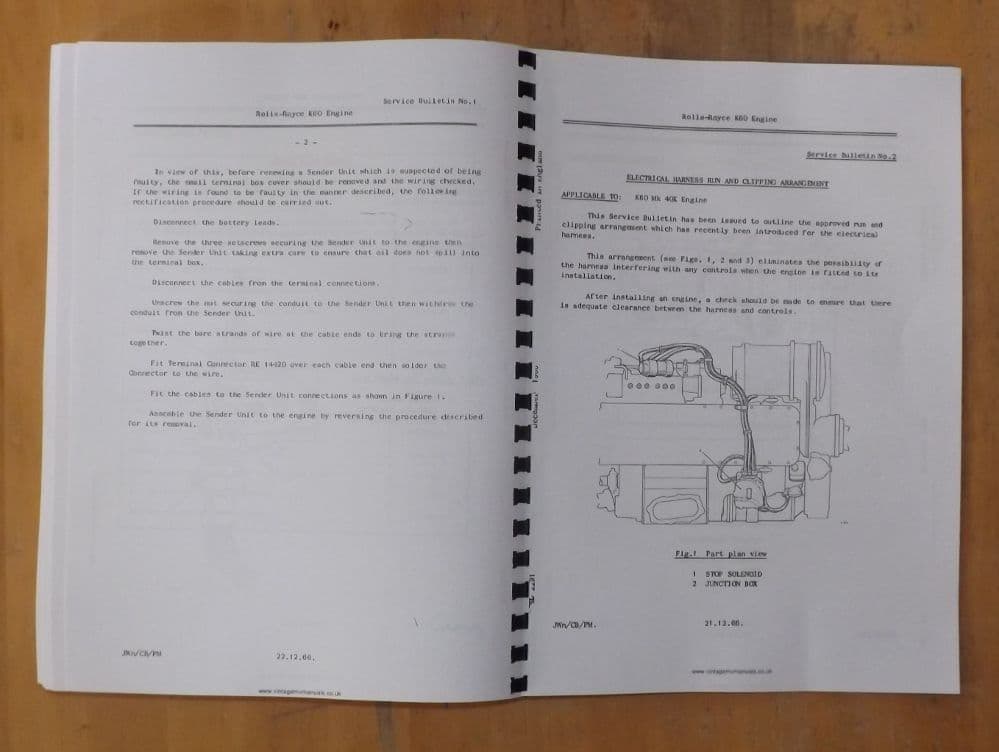

• Service bulletins no.1 to no.4.

1st generation copy.

A4.Card covers,plastic outers.Comb bound.

A  very comprehensive with lots of tolerances etc.Well illustrated.
